[rules-users] Drools 5.1.0.M2 - BPMN2 process issue - Eclipse plugin. -- The method getTextContent() is undefined for the type Node

Vijay K Pandey VPandey at mdes.ms.gov
Tue Jun 8 11:36:58 EDT 2010

Update::: Issues related to Plugin. When I recompiled the bpmn2 src and put that jar in the plugin lib, it simply didn't took the recompiled version. Then I removed the jar from the plugin lib and simply copied the - bpmn2 classes directly in the org/drools package of the plugin and voila - plugin started working fine.

Thanks
Vijay
From: Vijay K Pandey
Sent: Tuesday, June 08, 2010 8:48 AM
To: 'Rules Users List'
Subject: RE: Drools 5.1.0.M2 - BPMN2 process issue - Eclipse plugin. -- The method getTextContent() is undefined for the type Node

Update::: On the exception(mentioned below) related to jar "drools-bpmn2-5.1.0.M2.jar", I recreated this jar file from the Drools source (5.1.0.M2) against JDK6  and the exception went away. :) So far so good.

Plugin related exception is still there. I replaced the jar "drools-bpmn2.jar" which is present in the lib of plugin jar "org.drools.eclipse_5.1.0.M2.jar" with the recompiled jar, but not much luck - plugin is still not able to open the "*.bpmn" process. The error I get is "The method getTextContent() is undefined for the type Node" .

Right now I am at a dead end. Thanks in advance for help.

Thanks
Vijay
From: Vijay K Pandey
Sent: Monday, June 07, 2010 5:45 PM
To: 'Rules Users List'
Subject: RE: Drools 5.1.0.M2 - BPMN2 process issue - Eclipse plugin. -- The method getTextContent() is undefined for the type Node

I created a sample project to run a very simple rule flow (BPMN process), I got the similar error which the plugin is reporting. My env is SUN JDK 6. Here is the exception I get?  Any clue guys.


Exception in thread "main" java.lang.Error: Unresolved compilation problems:
      The method getTextContent() is undefined for the type Node
      The method getTextContent() is undefined for the type Node
      at org.drools.bpmn2.xml.StartEventHandler.handleNode(StartEventHandler.java:46)
      at org.drools.bpmn2.xml.AbstractNodeHandler.end(AbstractNodeHandler.java:77)
      at org.drools.xml.ExtensibleXmlParser.endElement(ExtensibleXmlParser.java:420)
      at com.sun.org.apache.xerces.internal.parsers.AbstractSAXParser.endElement(AbstractSAXParser.java:601)
      at com.sun.org.apache.xerces.internal.parsers.AbstractXMLDocumentParser.emptyElement(AbstractXMLDocumentParser.java:180)
      at com.sun.org.apache.xerces.internal.impl.xs.XMLSchemaValidator.emptyElement(XMLSchemaValidator.java:739)
      at com.sun.org.apache.xerces.internal.impl.XMLNSDocumentScannerImpl.scanStartElement(XMLNSDocumentScannerImpl.java:377)
      at com.sun.org.apache.xerces.internal.impl.XMLDocumentFragmentScannerImpl$FragmentContentDriver.next(XMLDocumentFragmentScannerImpl.java:2755)
      at com.sun.org.apache.xerces.internal.impl.XMLDocumentScannerImpl.next(XMLDocumentScannerImpl.java:648)
      at com.sun.org.apache.xerces.internal.impl.XMLNSDocumentScannerImpl.next(XMLNSDocumentScannerImpl.java:140)
      at com.sun.org.apache.xerces.internal.impl.XMLDocumentFragmentScannerImpl.scanDocument(XMLDocumentFragmentScannerImpl.java:511)
      at com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(XML11Configuration.java:808)
      at com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(XML11Configuration.java:737)
      at com.sun.org.apache.xerces.internal.parsers.XMLParser.parse(XMLParser.java:119)
      at com.sun.org.apache.xerces.internal.parsers.AbstractSAXParser.parse(AbstractSAXParser.java:1205)
      at com.sun.org.apache.xerces.internal.jaxp.SAXParserImpl$JAXPSAXParser.parse(SAXParserImpl.java:522)
      at javax.xml.parsers.SAXParser.parse(SAXParser.java:395)
      at org.drools.xml.ExtensibleXmlParser.read(ExtensibleXmlParser.java:295)
      at org.drools.xml.ExtensibleXmlParser.read(ExtensibleXmlParser.java:174)
      at org.drools.compiler.xml.XmlProcessReader.read(XmlProcessReader.java:44)
      at org.drools.compiler.ProcessBuilder.addProcessFromFile(ProcessBuilder.java:222)
      at org.drools.compiler.PackageBuilder.addProcessFromXml(PackageBuilder.java:415)
      at org.drools.compiler.PackageBuilder.addKnowledgeResource(PackageBuilder.java:475)
      at org.drools.compiler.PackageBuilder.addKnowledgeResource(PackageBuilder.java:517)
      at org.drools.builder.impl.KnowledgeBuilderImpl.add(KnowledgeBuilderImpl.java:28)

Thanks
Vijay
From: Vijay K Pandey
Sent: Sunday, June 06, 2010 11:43 PM
To: Rules Users List
Subject: Drools 5.1.0.M2 - BPMN2 process issue - Eclipse plugin. -- The method getTextContent() is undefined for the type Node

Hi,

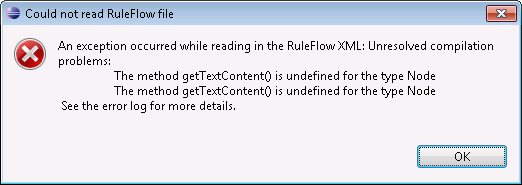

I just downloaded the Drools 5.1.0.M2 (have been using the snapshot version of around 16th April 2010) - created a sample "rule flow file(start-->user task-->end) - bpmn2 version". But when I clicked the file to open it gave the following error (image attached)

"The method getTextContent() is undefined for the type Node" .

I understand this error is related to org.w3c.dom.Node where this method was added as part of DOM Level 3 and available in JDK 5+ . My project and eclipse is configured against JDK 6+ . Not sure why this error with M2.

May be it is because of the drools-bpmn2.jar included in the drools eclipse plugin? Can someone shed some light that where it might be going wrong.


[cid:image001.png at 01CB06F6.8568A3E0]

Thanks
Vijay
