[windup-dev] Furnace not finding Windup FileService
Lincoln Baxter, III
lincolnbaxter at gmail.com
Tue Apr 21 11:54:02 EDT 2015
Ian,
Thanks! We it would have been a long hard road to get here without your
work :) The OSGi error is solved as long as you have the most recent
JBossTools Forge master (it didn't make it into the JBDS 8.1 release.)
What do you need FileService for? We'll need to introduce an API in the
windup tooling API for what you need.
~Lincoln
On Mon, Apr 20, 2015 at 8:40 AM, Ian Tewksbury <itewk at redhat.com> wrote:
> Jess and Lincoln,
>
> You all are my heros!
>
> I will take what you all have done and merge in and see where we are at
> tonight!
>
> Licoln, did you solve your OSGi error yet? If not that should be a simple
> fix. And yes, I need the FIleService.
>
> ~Ian
>
>
> ------------------------------
> *From: *"Jess Sightler" <jsightle at redhat.com>
> *To: *windup-dev at lists.jboss.org
> *Sent: *Thursday, April 2, 2015 7:23:53 PM
>
> *Subject: *Re: [windup-dev] Furnace not finding Windup FileService
>
> Ok, my PR for jbosstools caused issues, but fortunately gastaldi fixed
> them. :)
>
> This all appears to work now! Thanks everyone!
>
> On 04/02/2015 11:15 AM, Jess Sightler wrote:
>
> Ok, I pushed a fix for the graphcontext issue below. Reports can be
> generated now, although I suspect there are still plenty of other bugs.
> Feel free to give it a try!
>
>
> On 04/01/2015 11:07 PM, Jess Sightler wrote:
>
> Hi Lincoln,
>
> I have done some work on this over the past few days. Most of the work was
> me banging my head on the wall learning Eclipse and how the forge tools
> interact with it. :)
>
> But I believe that I have made significant progress. Here is the first PR:
>
> https://github.com/jbosstools/jbosstools-forge/pull/139
>
> This enables the export of the Proxy interface (and other methods within
> the same package). If you include code in WindupRuntimePlugin that
> references these classes, you will see a compile error from the tycho
> compiler's OSGI validator. That's because the previous export didn't export
> the full package (including subpackages) for some reason, and it doesn't
> work at runtime either.
>
> I have pushed my changes to the plugin here:
> https://github.com/windup/windup-eclipse-plugin/tree/windup2-jess
>
> The current error is as follows:
>
> java.lang.NoClassDefFoundError:
> com/tinkerpop/blueprints/util/wrappers/event/EventGraph
> at java.lang.Class.getDeclaredMethods0(Native Method)
> at java.lang.Class.privateGetDeclaredMethods(Class.java:2701)
> at java.lang.Class.getDeclaredMethods(Class.java:1975)
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.SecurityActions.getDeclaredMethods(SecurityActions.java:30)
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.getMethods(ProxyFactory.java:1121)
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.getMethods(ProxyFactory.java:1096)
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.makeSortedMethodList(ProxyFactory.java:803)
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.computeSignature(ProxyFactory.java:810)
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass(ProxyFactory.java:398)
> at
> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback$3.call(ClassLoaderAdapterCallback.java:987)
> at
> org.jboss.forge.furnace.util.ClassLoaders.executeIn(ClassLoaders.java:42)
> at
> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.enhance(ClassLoaderAdapterCallback.java:900)
> at
> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.enhanceResult(ClassLoaderAdapterCallback.java:277)
> at
> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.access$200(ClassLoaderAdapterCallback.java:37)
> at
> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback$2.call(ClassLoaderAdapterCallback.java:124)
> at
> org.jboss.forge.furnace.util.ClassLoaders.executeIn(ClassLoaders.java:42)
> at
> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.invoke(ClassLoaderAdapterCallback.java:96)
> at
> org.jboss.windup.graph.GraphContextFactory_$$_javassist_900cc211-7ad7-4a83-9359-b7518a7734e3.create(GraphContextFactory_$$_javassist_900cc211-7ad7-4a83-9359-b7518a7734e3.java)
> at
> org.jboss.tools.windup.core.WindupService.generateGraph(WindupService.java:247)
> at
> org.jboss.tools.windup.core.WindupService.generateGraph(WindupService.java:168)
> at
> org.jboss.tools.windup.ui.internal.commands.GenerateWindupReportHandler$1.run(GenerateWindupReportHandler.java:78)
> at org.eclipse.core.internal.jobs.Worker.run(Worker.java:54)
> Caused by: java.lang.ClassNotFoundException:
> com.tinkerpop.blueprints.util.wrappers.event.EventGraph cannot be found by
> org.jboss.tools.windup.runtime_3.1.0.Alpha2-v20150402-0253
> at
> org.eclipse.osgi.internal.loader.BundleLoader.findClassInternal(BundleLoader.java:432)
> at
> org.eclipse.osgi.internal.loader.BundleLoader.findClass(BundleLoader.java:345)
> at
> org.eclipse.osgi.internal.loader.BundleLoader.findClass(BundleLoader.java:337)
> at
> org.eclipse.osgi.internal.loader.ModuleClassLoader.loadClass(ModuleClassLoader.java:160)
> at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
> ... 22 more
>
>
> This one actually seems pretty clear. I think the real fix here is to quit
> exposing so much to the client, but rather to expose a more friendly API
> service. I will work on that soon.
>
>
>
> On 03/27/2015 06:21 PM, Lincoln Baxter, III wrote:
>
> Hey Ian,
>
> I've pushed up some "work" on the Windup Eclipse Plugin. I've simplified
> the dependencies, updated to Windup 2.2.0.Final, and removed dependencies
> that I do not believe belong in the OSGi bundles.
>
> https://github.com/windup/windup-eclipse-plugin/tree/windup2-lincoln
>
> Unfortunately I am not an OSGi expert, and I am getting an exception
> that I'm hoping you can help me with. I need to know why this class is not
> being exported from the "org.jboss.tools.forge.runtime" bundle, or why it
> is not being imported where it should be. We don't have this problem with
> the Forge Eclipse Plugin, so something must be different with our
> imports/exports. I tried to add this manually in several places, but to no
> avail. (See trace below message.)
>
> I think that we will have more success if we are in more constant
> communication about these issues. You can help with the OSGi issues, I can
> help with the Furnace issues, and the team can help add new APIs that
> you'll need to do your work.
>
> My recommendation once we get this CNFE resolved (assuming that's the
> last issue with what's currently in my branch,) is that we begin building
> specific interfaces for use in the Eclipse plugin and provide them via a
> Windup service. I also recommend sticking entirely to interfaces where
> possible. That will make this go a lot more smoothly because Furnace is
> really best at proxying interfaces across the ClassLoader boundary.
> Proxying concrete classes is never really safe because you can't always
> guarantee a sane/proxiable inheritance hierarchy.
>
> What are your thoughts?
>
> ~Lincoln
>
> !ENTRY org.eclipse.core.jobs 4 2 2015-03-27 17:45:55.754
>
> !MESSAGE An internal error occurred during: "Generate Windup Report".
>
> !STACK 0
>
> org.jboss.forge.furnace.exception.ContainerException: Failed to create
> proxy for type [class org.jboss.windup.graph.GraphContextFactoryImpl]
>
> at org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.enhance(
> ClassLoaderAdapterCallback.java:1034)
>
> at org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.enhanceResult(
> ClassLoaderAdapterCallback.java:253)
>
> at org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.access$200(
> ClassLoaderAdapterCallback.java:37)
>
> at org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback$2.call(
> ClassLoaderAdapterCallback.java:124)
>
> at org.jboss.forge.furnace.util.ClassLoaders.executeIn(
> ClassLoaders.java:42)
>
> at org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.invoke(
> ClassLoaderAdapterCallback.java:96)
>
> at
> org.jboss.forge.furnace.services.Imported_$$_javassist_e21290d9-1468-4bd4-98c1-073a2776670c.get(Imported_$$_javassist_e21290d9-1468-4bd4-98c1-073a2776670c.java)
>
> at org.jboss.tools.forge.core.furnace.FurnaceService.lookup(
> FurnaceService.java:95)
>
> at org.jboss.tools.windup.core.WindupService.getServiceFromFurnace(
> WindupService.java:525)
>
> at org.jboss.tools.windup.core.WindupService.generateGraph(
> WindupService.java:241)
>
> at org.jboss.tools.windup.core.WindupService.generateGraph(
> WindupService.java:168)
>
> at
> org.jboss.tools.windup.ui.internal.commands.GenerateWindupReportHandler$1.run(
> GenerateWindupReportHandler.java:78)
>
> at org.eclipse.core.internal.jobs.Worker.run(Worker.java:54)
>
> Caused by: java.lang.RuntimeException: by java.lang.NoClassDefFoundError:
> org/jboss/forge/furnace/proxy/javassist/util/proxy/Proxy
>
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass3(
> ProxyFactory.java:515)
>
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass2(
> ProxyFactory.java:492)
>
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass1(
> ProxyFactory.java:428)
>
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass(
> ProxyFactory.java:400)
>
> at org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback$3.call(
> ClassLoaderAdapterCallback.java:987)
>
> at org.jboss.forge.furnace.util.ClassLoaders.executeIn(
> ClassLoaders.java:42)
>
> at org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.enhance(
> ClassLoaderAdapterCallback.java:900)
>
> ... 12 more
>
> Caused by: org.jboss.forge.furnace.proxy.javassist.CannotCompileException:
> by java.lang.NoClassDefFoundError:
> org/jboss/forge/furnace/proxy/javassist/util/proxy/Proxy
>
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.FactoryHelper.toClass(
> FactoryHelper.java:170)
>
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass3(
> ProxyFactory.java:507)
>
> ... 18 more
>
> Caused by: java.lang.NoClassDefFoundError:
> org/jboss/forge/furnace/proxy/javassist/util/proxy/Proxy
>
> at java.lang.ClassLoader.defineClass1(Native Method)
>
> at java.lang.ClassLoader.defineClass(ClassLoader.java:760)
>
> at sun.reflect.GeneratedMethodAccessor95.invoke(Unknown Source)
>
> at sun.reflect.DelegatingMethodAccessorImpl.invoke(
> DelegatingMethodAccessorImpl.java:43)
>
> at java.lang.reflect.Method.invoke(Method.java:483)
>
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.FactoryHelper.toClass2(
> FactoryHelper.java:182)
>
> at
> org.jboss.forge.furnace.proxy.javassist.util.proxy.FactoryHelper.toClass(
> FactoryHelper.java:164)
>
> ... 19 more
>
> Caused by: java.lang.ClassNotFoundException:
> org.jboss.forge.furnace.proxy.javassist.util.proxy.Proxy cannot be found by
> org.jboss.tools.windup.runtime_3.1.0.qualifier
>
> at org.eclipse.osgi.internal.loader.BundleLoader.findClassInternal(
> BundleLoader.java:432)
>
> at org.eclipse.osgi.internal.loader.BundleLoader.findClass(
> BundleLoader.java:345)
>
> at org.eclipse.osgi.internal.loader.BundleLoader.findClass(
> BundleLoader.java:337)
>
> at org.eclipse.osgi.internal.loader.ModuleClassLoader.loadClass(
> ModuleClassLoader.java:160)
>
> at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
>
> ... 26 more
>
> ------------------------------
> *From: *"Lincoln Baxter, III" <lincolnbaxter at gmail.com>
> <lincolnbaxter at gmail.com>
> *To: *"Windup-dev List" <windup-dev at lists.jboss.org>
> <windup-dev at lists.jboss.org>
> *Cc: *"Lincoln Baxter, III" <lincoln at redhat.com> <lincoln at redhat.com>,
> "George Gastaldi" <ggastald at redhat.com> <ggastald at redhat.com>
> *Sent: *Friday, March 27, 2015 12:13:03 PM
> *Subject: *Re: [windup-dev] Furnace not finding Windup FileService
>
> Ah, well one issue is that the "*ModelServices" like FileService are not
> actually Furnace services.. That's unfortunate... Do you need access to the
> FileService?
>
> On Wed, Mar 25, 2015 at 12:33 PM, Ian Tewksbury <itewk at redhat.com> wrote:
>
>> Lincoln,
>>
>> Sorry. I just saw this. My email filters took over when you added the
>> windup mailing list and it got filtered out of my main inbox.
>>
>> The Furnace method I added was:
>>
>> public <S> S lookupType(Class<S> service) {
>> S instance = null;
>> if (furnace != null) {
>> Set<Class<S>> types = null;
>> types = furnace.getAddonRegistry().getExportedTypes(service);
>>
>> if (types != null && !types.isEmpty()) {
>> for(Class<S> type : types) {
>> try {
>> instance = type.newInstance();
>> break;
>> } catch (Exception e) {
>> e.getMessage();
>> //skip to next instance if this one did not work
>> }
>> }
>> }
>> }
>>
>> return instance;
>> }
>>
>> My issue was with loading "FileService.class". Calling "lookup" could
>> not find it, but calling my new "lookupType" it could find it.
>>
>> Blue Skies,
>> ~Ian
>>
>> ------------------------------
>> *From: *"Lincoln Baxter, III" <lincoln at redhat.com>
>> *To: *"Ian Tewksbury" <itewk at redhat.com>
>> *Cc: *"Robb Greathouse" <robb.greathouse at redhat.com>, "George Gastaldi" <
>> ggastald at redhat.com>, "Windup-dev List" <windup-dev at lists.jboss.org>
>> *Sent: *Monday, March 23, 2015 10:23:09 AM
>>
>> *Subject: *Re: Furnace not finding Windup FileService
>>
>> Hey Ian,
>>
>> (Adding windup-dev.)
>>
>> I'm not really sure what this issue could be, but it worries me that
>> you needed to add a method to FurnaceService. What did you add? You can't
>> ask Furnace for an instance of a type that is not a Service. (It wouldn't
>> know how to construct it.)
>>
>> The last error you received worries me specifically because it makes me
>> think that there is something funky going on with the ClassLoader hierarchy
>> itself, and that is never good; however, it could be due to some kind of
>> quirk with what you added (it also may be a bug), so I think I need to see
>> what you are doing.
>>
>> Could you show me where this code is so that I can take a look?
>>
>> Thanks!
>> ~Lincoln
>>
>> ------------------------------
>> *From: *"Ian Tewksbury" <itewk at redhat.com>
>> *To: *"Lincoln Baxter" <lbaxter at redhat.com>
>> *Cc: *"Robb Greathouse" <robb.greathouse at redhat.com>
>> *Sent: *Sunday, March 22, 2015 9:57:36 PM
>> *Subject: *Re: Furnace not finding Windup FileService
>>
>> Licoln,
>>
>> Got passed those previous errors. New error now:
>>
>> !ENTRY org.eclipse.core.jobs 4 2 2015-03-22 21:52:59.403
>> !MESSAGE An internal error occurred during: "Validating".
>> !STACK 0
>> java.lang.LinkageError: loader constraint violation: loader (instance of
>> org/jboss/tools/forge/core/internal/furnace/CompositeFurnaceClassLoader)
>> previously initiated loading for a different type with name
>> "org/jboss/forge/furnace/util/Predicate"
>> at java.lang.Class.getDeclaredMethods0(Native Method)
>> at java.lang.Class.privateGetDeclaredMethods(Class.java:2615)
>> at java.lang.Class.getDeclaredMethods(Class.java:1860)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.SecurityActions.getDeclaredMethods(SecurityActions.java:30)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.RuntimeSupport.findMethod2(RuntimeSupport.java:134)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.RuntimeSupport.findMethod(RuntimeSupport.java:65)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.RuntimeSupport.find2Methods(RuntimeSupport.java:53)
>> at
>> org.jboss.windup.exec.configuration.WindupConfiguration_$$_javassist_5effd6de-6f27-4c9d-9f94-b9492b06844c.<clinit>(WindupConfiguration_$$_javassist_5effd6de-6f27-4c9d-9f94-b9492b06844c.java)
>> at sun.misc.Unsafe.ensureClassInitialized(Native Method)
>> at
>> sun.reflect.UnsafeFieldAccessorFactory.newFieldAccessor(UnsafeFieldAccessorFactory.java:43)
>> at
>> sun.reflect.ReflectionFactory.newFieldAccessor(ReflectionFactory.java:140)
>> at java.lang.reflect.Field.acquireFieldAccessor(Field.java:1057)
>> at java.lang.reflect.Field.getFieldAccessor(Field.java:1038)
>> at java.lang.reflect.Field.set(Field.java:741)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.setField(ProxyFactory.java:525)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass3(ProxyFactory.java:508)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass2(ProxyFactory.java:492)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass1(ProxyFactory.java:428)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass(ProxyFactory.java:400)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback$3.call(ClassLoaderAdapterCallback.java:987)
>> at
>> org.jboss.forge.furnace.util.ClassLoaders.executeIn(ClassLoaders.java:42)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.enhance(ClassLoaderAdapterCallback.java:900)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.enhanceResult(ClassLoaderAdapterCallback.java:253)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.access$200(ClassLoaderAdapterCallback.java:37)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback$2.call(ClassLoaderAdapterCallback.java:124)
>> at
>> org.jboss.forge.furnace.util.ClassLoaders.executeIn(ClassLoaders.java:42)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.invoke(ClassLoaderAdapterCallback.java:96)
>> at
>> org.jboss.forge.furnace.services.Imported_$$_javassist_34707ba1-98fb-4b8a-93ed-559398be971b.get(Imported_$$_javassist_34707ba1-98fb-4b8a-93ed-559398be971b.java)
>> at
>> org.jboss.tools.forge.core.furnace.FurnaceService.lookup(FurnaceService.java:96)
>> at
>> org.jboss.tools.windup.core.WindupService.getServiceFromFurnace(WindupService.java:485)
>> at
>> org.jboss.tools.windup.core.WindupService.generateGraph(WindupService.java:226)
>> at
>> org.jboss.tools.windup.core.WindupService.getGraph(WindupService.java:301)
>> at
>> org.jboss.tools.windup.core.WindupService.getInlineHints(WindupService.java:103)
>> at
>> org.jboss.tools.windup.core.internal.validators.WindupValidator.validate(WindupValidator.java:81)
>> at org.eclipse.wst.validation.Validator$V2.validate(Validator.java:1159)
>> at
>> org.eclipse.wst.validation.internal.ValManager.validate(ValManager.java:704)
>> at
>> org.eclipse.wst.validation.internal.ValManager$1.visit(ValManager.java:665)
>> at
>> org.eclipse.wst.validation.internal.ValManager.accept(ValManager.java:810)
>> at
>> org.eclipse.wst.validation.internal.ValManager.validate(ValManager.java:669)
>> at
>> org.eclipse.wst.validation.internal.ValidationRunner.execute(ValidationRunner.java:134)
>> at
>> org.eclipse.wst.validation.internal.ValidationRunner.validate(ValidationRunner.java:68)
>> at
>> org.eclipse.wst.validation.ui.internal.ManualValidationRunner.runInWorkspace(ManualValidationRunner.java:83)
>> at
>> org.eclipse.core.internal.resources.InternalWorkspaceJob.run(InternalWorkspaceJob.java:38)
>> at org.eclipse.core.internal.jobs.Worker.run(Worker.java:54)
>>
>>
>>
>> Blue Skies,
>> ~Ian
>>
>> ------------------------------
>> *From: *"Ian Tewksbury" <itewk at redhat.com>
>> *To: *"Lincoln Baxter" <lbaxter at redhat.com>
>> *Cc: *"Robb Greathouse" <robb.greathouse at redhat.com>
>> *Sent: *Sunday, March 22, 2015 7:49:28 PM
>> *Subject: *Re: Furnace not finding Windup FileService
>>
>> Licncoln,
>>
>> I added some new API to the FurnaceService to be able to lookup a type
>> which got me passed the below errors.
>>
>> Now I am running into:
>>
>> java.lang.NoClassDefFoundError: com/tinkerpop/frames/FramedGraph
>> at java.lang.Class.getDeclaredMethods0(Native Method)
>> at java.lang.Class.privateGetDeclaredMethods(Class.java:2615)
>> at java.lang.Class.getDeclaredMethods(Class.java:1860)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.SecurityActions.getDeclaredMethods(SecurityActions.java:30)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.getMethods(ProxyFactory.java:1121)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.getMethods(ProxyFactory.java:1096)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.makeSortedMethodList(ProxyFactory.java:803)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.computeSignature(ProxyFactory.java:810)
>> at
>> org.jboss.forge.furnace.proxy.javassist.util.proxy.ProxyFactory.createClass(ProxyFactory.java:398)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback$3.call(ClassLoaderAdapterCallback.java:987)
>> at
>> org.jboss.forge.furnace.util.ClassLoaders.executeIn(ClassLoaders.java:42)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.enhance(ClassLoaderAdapterCallback.java:900)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.enhanceResult(ClassLoaderAdapterCallback.java:277)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.access$200(ClassLoaderAdapterCallback.java:37)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback$2.call(ClassLoaderAdapterCallback.java:124)
>> at
>> org.jboss.forge.furnace.util.ClassLoaders.executeIn(ClassLoaders.java:42)
>> at
>> org.jboss.forge.furnace.proxy.ClassLoaderAdapterCallback.invoke(ClassLoaderAdapterCallback.java:96)
>> at
>> org.jboss.windup.graph.GraphContextFactory_$$_javassist_2a504b60-d6e3-450e-87b5-f41eb849ab81.create(GraphContextFactory_$$_javassist_2a504b60-d6e3-450e-87b5-f41eb849ab81.java)
>> at
>> org.jboss.tools.windup.core.WindupService.generateGraph(WindupService.java:235)
>> at
>> org.jboss.tools.windup.core.WindupService.getGraph(WindupService.java:303)
>> at
>> org.jboss.tools.windup.core.WindupService.getInlineHints(WindupService.java:103)
>> at
>> org.jboss.tools.windup.core.internal.validators.WindupValidator.validate(WindupValidator.java:81)
>> at org.eclipse.wst.validation.Validator$V2.validate(Validator.java:1159)
>> at
>> org.eclipse.wst.validation.internal.ValManager.validate(ValManager.java:704)
>> at
>> org.eclipse.wst.validation.internal.ValManager$1.visit(ValManager.java:665)
>> at
>> org.eclipse.wst.validation.internal.ValManager.accept(ValManager.java:810)
>> at
>> org.eclipse.wst.validation.internal.ValManager.validate(ValManager.java:669)
>> at
>> org.eclipse.wst.validation.internal.ValidationRunner.execute(ValidationRunner.java:134)
>>
>> at
>> org.eclipse.wst.validation.internal.ValidationRunner.validate(ValidationRunner.java:68)
>> at
>> org.eclipse.wst.validation.ui.internal.ManualValidationRunner.runInWorkspace(ManualValidationRunner.java:83)
>> at
>> org.eclipse.core.internal.resources.InternalWorkspaceJob.run(InternalWorkspaceJob.java:38)
>> at org.eclipse.core.internal.jobs.Worker.run(Worker.java:54)
>> Caused by: java.lang.ClassNotFoundException:
>> com.tinkerpop.frames.FramedGraph cannot be found by
>> org.jboss.tools.windup.runtime_3.1.0.qualifier
>> at
>> org.eclipse.osgi.internal.loader.BundleLoader.findClassInternal(BundleLoader.java:432)
>> at
>> org.eclipse.osgi.internal.loader.BundleLoader.findClass(BundleLoader.java:345)
>> at
>> org.eclipse.osgi.internal.loader.BundleLoader.findClass(BundleLoader.java:337)
>> at
>> org.eclipse.osgi.internal.loader.ModuleClassLoader.loadClass(ModuleClassLoader.java:160)
>> at java.lang.ClassLoader.loadClass(ClassLoader.java:358)
>> ... 32 more
>>
>>
>> I have verified that the Furnace add on
>> 'org-jboss-windup-graph-windup-graph' is being loaded and contains the
>> windup-frames JAR so I am not clear why furnace is not able to load the
>> class.
>>
>>
>> Ideas?
>>
>>
>> Blue Skies,
>>
>> ~Ian
>>
>> ------------------------------
>> *From: *"Ian Tewksbury" <itewk at redhat.com>
>> *To: *"Lincoln Baxter" <lbaxter at redhat.com>
>> *Cc: *"Robb Greathouse" <robb.greathouse at redhat.com>
>> *Sent: *Sunday, March 22, 2015 5:18:55 AM
>> *Subject: *Re: Furnace not finding Windup FileService
>>
>> Lioncoln,
>>
>> Looking here,
>> http://grepcode.com/file/repository.jboss.org/nexus/content/repositories/releases/org.jboss.forge.furnace.container/cdi-impl/2.10.1.Final/org/jboss/forge/furnace/container/cdi/impl/WeldServiceRegistry.java#WeldServiceRegistry.getExportedInstances%28java.lang.Class%29, and
>> debuging through eclipse without source, I have figured out it is choking
>> on like 189. It appears this #getExportedInstances method is only for
>> loading beans. I see a #getExportedType which is what I am guessing I need,
>> but the only Furnace API I see is FurnaceService.INSTANCE.lookup(clazz)
>> which ends up doing this bean lookup rather then a type lookup. Am I
>> missing something here? Is there just missing API to look up a type and not
>> a bean via Furnace?
>>
>> Blue Skies,
>> ~Ian
>>
>> ------------------------------
>> *From: *"Ian Tewksbury" <itewk at redhat.com>
>> *To: *"Lincoln Baxter" <lbaxter at redhat.com>, "Robb Greathouse" <
>> robb.greathouse at redhat.com>
>> *Sent: *Sunday, March 22, 2015 4:57:43 AM
>> *Subject: *Furnace not finding Windup FileService
>>
>> Lincoln,
>>
>> I can not figure out why Furnance is reporting that it can not find the
>> Windup FileService despite the fact that it is reporting it loaded the
>> graph-api addon. Any ideas?
>>
>> Please see attached for the log. It clearly shows the graph-api addon
>> being loaded. And I have verified that addon contains the graph-api.jar
>> which contains the FileService. I have tried to debug the furnace stuff but
>> I keep running into source not found issues and getting lost. I have been
>> able to tell that ImportedImpl#getExportedInstances is getting called and
>> it is looping over the graph-api addon. But it does not seem to find the
>> class in there, but I have not been able to debug into furnace beyond that
>> point.
>>

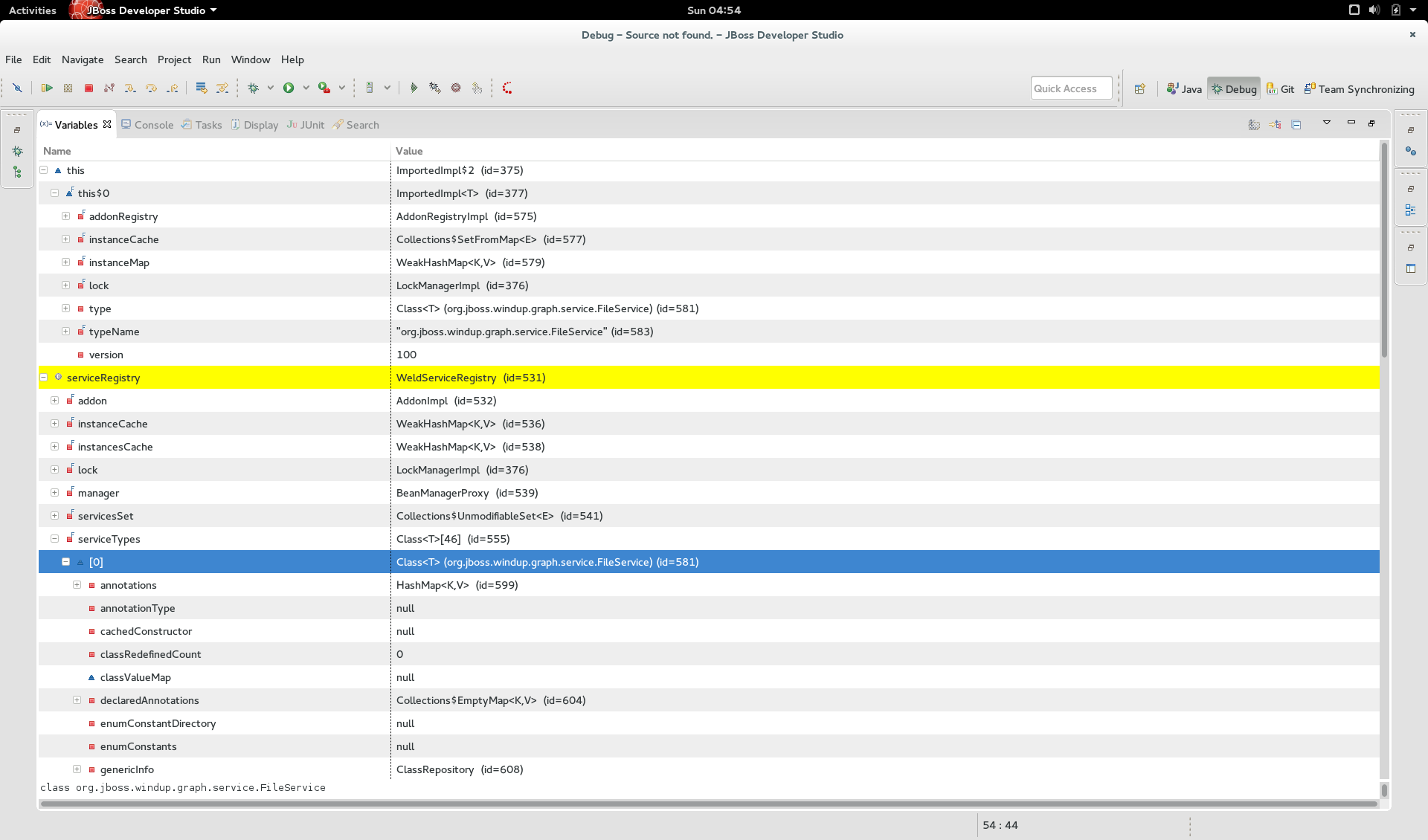

>> Looking at the variable state the WeldServiceRegistery instance for the
>> graph-api addon shows the FIleService there. For some reason it is just not
>> being retrevied. I have attached a screenshoot of the variable state from
>> within ImportedImpl#getExportedInstances. Can you think of any
>> reason serviceRegistry.getExportedInstances(type) would be failing giving
>> all of this?
>>
>>
>> ~Ian
>>
>>
>>
>>
>>
>>
>> _______________________________________________
>> windup-dev mailing list
>> windup-dev at lists.jboss.org
>> https://lists.jboss.org/mailman/listinfo/windup-dev
>>
>
>
>
> --
> Lincoln Baxter, III
> http://ocpsoft.org
> "Simpler is better."
>
>
>
> _______________________________________________
> windup-dev mailing listwindup-dev at lists.jboss.orghttps://lists.jboss.org/mailman/listinfo/windup-dev
>
>
> --
> Calendar Free/Busy: https://www.google.com/calendar/embed?src=jsightle%40redhat.com&ctz=America/New_York
>
>
>
> _______________________________________________
> windup-dev mailing listwindup-dev at lists.jboss.orghttps://lists.jboss.org/mailman/listinfo/windup-dev
>
>
> --
> Calendar Free/Busy: https://www.google.com/calendar/embed?src=jsightle%40redhat.com&ctz=America/New_York
>
>
>
> _______________________________________________
> windup-dev mailing listwindup-dev at lists.jboss.orghttps://lists.jboss.org/mailman/listinfo/windup-dev
>
>
> --
> Calendar Free/Busy: https://www.google.com/calendar/embed?src=jsightle%40redhat.com&ctz=America/New_York
>
>
> _______________________________________________
> windup-dev mailing list
> windup-dev at lists.jboss.org
> https://lists.jboss.org/mailman/listinfo/windup-dev
>
>
> _______________________________________________
> windup-dev mailing list
> windup-dev at lists.jboss.org
> https://lists.jboss.org/mailman/listinfo/windup-dev
>
--
Lincoln Baxter, III
http://ocpsoft.org
"Simpler is better."
-------------- next part --------------
An HTML attachment was scrubbed...
URL: http://lists.jboss.org/pipermail/windup-dev/attachments/20150421/09c427af/attachment-0001.html
-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: image/png
Size: 172297 bytes
Desc: not available
Url : http://lists.jboss.org/pipermail/windup-dev/attachments/20150421/09c427af/attachment-0001.png
More information about the windup-dev
mailing list
